£ 654.00 GBP

Lowther DX3/DX55

view Details
New

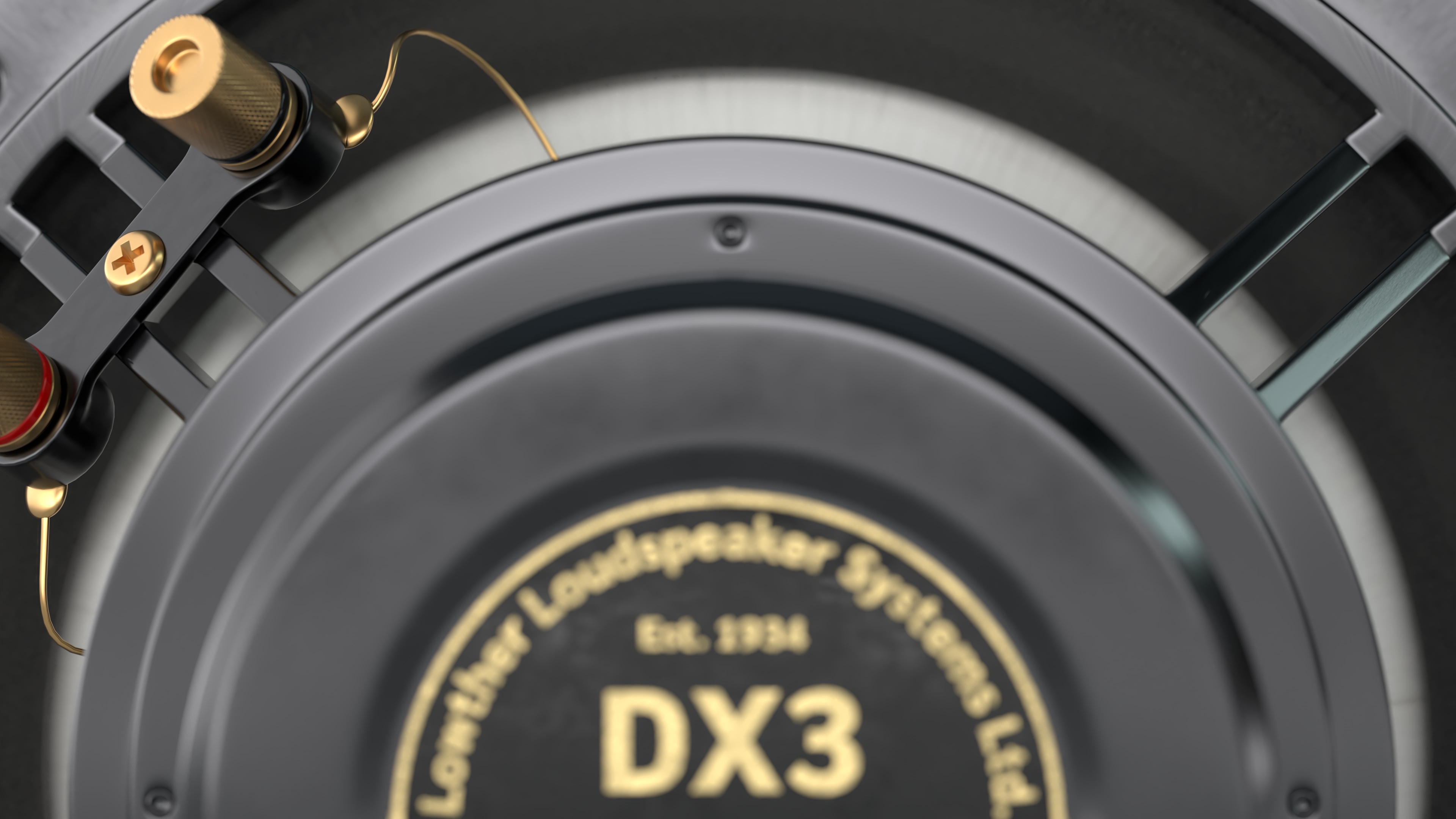

Images of the Lowther DX3 Loudspeaker Drive Unit
No items found.

Lowther DX3/DX55

Enquire below for your personal quote.
£ 654.00 GBP
Per Drive Unit
Pre-Order
(available as a single mono or stereo pair)
Difficulty:

Enjoy the smooth Lowther sound with our DX Series. With maximum retention of sound information, the DX Series offers the full listening experience for audio-perfectionists. Welcome to a new type of listening.

Every Lowther drive unit comes with a complementary digital downloaded plan. Please enter your plan of choice at the checkout.

Lowther Plans are free when you buy a new Lowther Drive Unit. Please see below to find out which drive units will fit this cabinet.

Click here to view our selection of Veneers

Quick Quote
Build your Drive Units
Make your selection below to get a quick online estimate. Click the enquire button to get an official quote emailed to you by one of our representatives.
Deposit:
Estimated Price:
£ 654.00 GBP
Or find an authorised local representativeDownload the 5" Performance GraphsDownload the 8" Performance Graphs

DX Series Speaker Drive Units

The ultimate in luxury listening experiences

Enjoy the smooth Lowther sound with our DX Series. With maximum retention of sound information, the DX Series offers the full listening experience for audio-perfectionists.

Welcome to a new type of listening.

State of the art rare earth magnet technology

We’ve harnessed the latest in rare earth magnet technology to bring whole sound reproduction into the DX Series.

Here at Lowther, we’ve become known for our large magnet assemblies. They’re exceptional, but we knew that we could do one step better.

The magnets in the DX Series are the lightest and most compact on the market, yet they’re also some of the most powerful. They offer a wider range of sound and can reach diaphragm acceleration rates far beyond those accessible to conventional magnet systems.

The DX Series is for when only perfection will do.

Luxurious listening with the coil control system

This state of the art magnet technology is combined with our coil control system, to increase the speed of the speaker cones whilst reducing any oscillation in sound frequencies to an absolute minimum.

The result? A perfect listening experience.

Inner cone isolation for flawless audio

Both the DX Series and the EX Series have the inner speaker cone isolated from the outer, and we’ve also added a reverse roll to the rim of their inner cones. So, rather than the two cones working in unison at certain frequencies, you can now enjoy one smooth sound.

Far more detail is captured and reproduced, so that live listening experience doesn’t feel quite so far away. With complete diaphragm control, our speaker drivers offer the latest in listening experience.

Audio perfection for audio perfectionists

If you’re looking for pure audio, near-perfect sound reproduction and the ultimate in listening experiences - you’ll find it in the DX Series.

Order NowBook an Audition
Veneer Selection
In the White
(Standard)
American Walnut
(Standard)
Figured Maple (Standard)
Crown Ash (Standard)
Oak (Standard)
Sapele (Premium)
American Cherry (Premium)
Bamboo (Premium)
Zibrano (Premium)
Sycamore (Premium)
Eucalyptus Figured (Premium)
BubingA (Premium)
Recommended Front Drive Units
Arrow to denote if the the dropdown box is open.
No items found.
Recommended Top Drive Units
Arrow to denote if the the dropdown box is open.
No items found.
All Compatible Front Drive Units
Arrow to denote if the the dropdown box is open.
No items found.
Graphs
Arrow to denote if the the dropdown box is open.
All our loudspeakers are analysed in our listening room using REW acoustics software. The aim is to show a graphic comparison between each Lowther enclosure on demonstration with the recommended drive unit installed for that type of cabinet.
Technical Specifications
Arrow to denote if the the dropdown box is open.
  • Overall diameter 22.5 cm
  • Overall Depth 7.00 cm
  • Depth from Rear of Mounting Frame 6.6 cm
  • PCD Mounting Centres 20.8 cm
  • Baffle hole cut-out 19 cm
  • Magnet Ring Diameter 9.0 cm
  • Voice coil diameter 3.9 cm
  • Voice coil impedance (nominal) 4, 8 or 15 ohm
  • Air gap width 1.0 mm
  • Air gap height 5.0 mm
  • Magnet type Hi-Ferric'™ Rare Earth
  • Flux density (1 Tesla=10,000 gauss) 2.0 Tesla
  • Diaphragm Twin-paper
  • Frequency response 30 Hz - 22 kHz
  • Maximum voice coil travel ± 1 mm
  • Shipping weight 2.5 kg
  • DC Resistance of Voice Coil Re 7.4 ohms
  • Free Air Resonance Fo 45 Hz
  • Emission Piston Area Sd 0.021M²
  • Equivalent Volume Suspension Vas 52.460 Ltrs
  • Suspension Compliance Cms 837.732 u M/N
  • Mass of Cone Mmd 11.0 g
  • Mass of Moving Parts Mms 12.75 g
  • Force Factor Bl 10.985 T-M
  • Mechanical Q Factor Qms 3.533
  • Electrical Q Factor Qes 0.239
  • Total Q Factor Qts 0.224
  • Voice Coil Inductance @ 1 kHz Le 35.511 uH
  • Reference Efficiency No 2.449%
  • Sound Pressure Level SPL 95.908 Db
